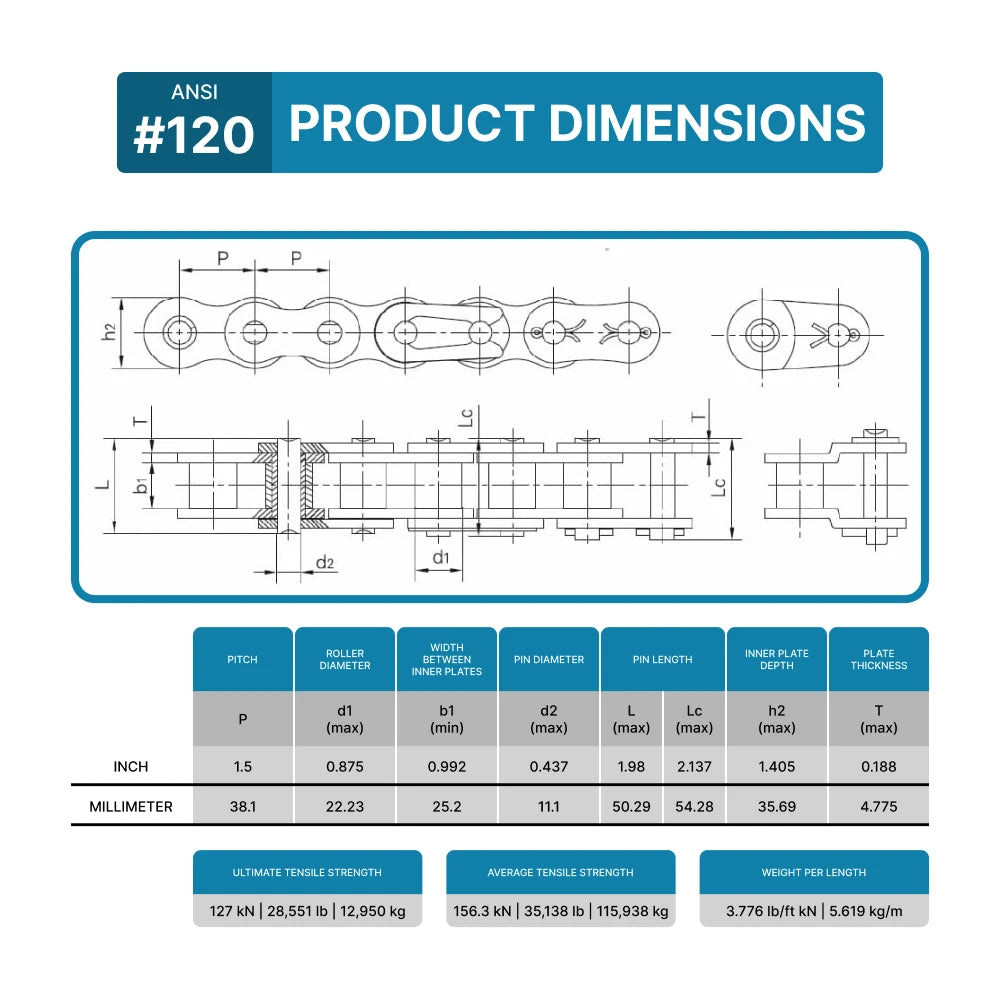

ANSI No |
#120 | LENGTH | 10 ft |
| PITCH | 1.5 inch (38.1 mm) | ROLLER DIAMETER (D1 MAX) |
0.875 inch (22.23 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.992 inch (25.22 mm) | PIN DIAMETER (D2 MAX) |
0.437 inch (11.1 mm) |
| PIN LENGTH (L MAX) |
1.98 inch (50.3 mm) | PIN LENGTH (LC MAX) |
2.137 inch (43.3 mm) |
| INNER PLATE DEPTH (H2 MAX) |
1.405 inch (35.7 mm) | PLATE THICKNESS (T MAX) |
0.188 inch (4.8 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
127/28864 kN/LB | WEIGHT | 3.776 lb/ft (5.62 kg/m) |
