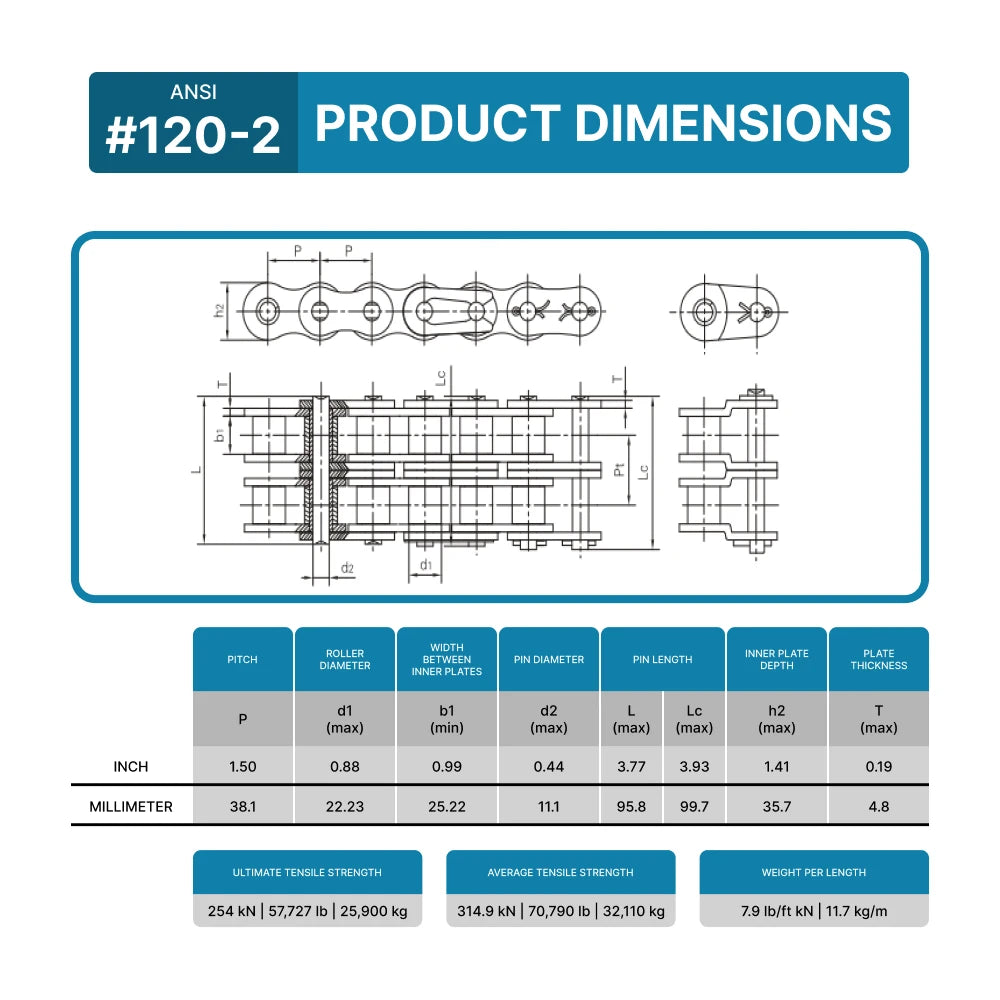

ANSI No |
#120-2 | LENGTH | 10 ft |
| PITCH | 1.50 inch (38.1 mm) | ROLLER DIAMETER (D1 MAX) |
0.88 inch (22.23 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.99 inch (25.22 mm) | PIN DIAMETER (D2 MAX) |
0.44 inch (11.1 mm) |
| PIN LENGTH (L MAX) |
3.77 inch (95.8 mm) | PIN LENGTH (LC MAX) |
3.93 inch (99.7 mm) |
| INNER PLATE DEPTH (H2 MAX) |
1.41 inch (35.7 mm) | PLATE THICKNESS (T MAX) |
0.19 inch (4.8 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
254/57,727 kN/LB | WEIGHT | 7.9 lb/ft (11.7 kg/m) |
