#100H Heavy Duty Roller Chain x 10 feet + 2 Free Connecting Links

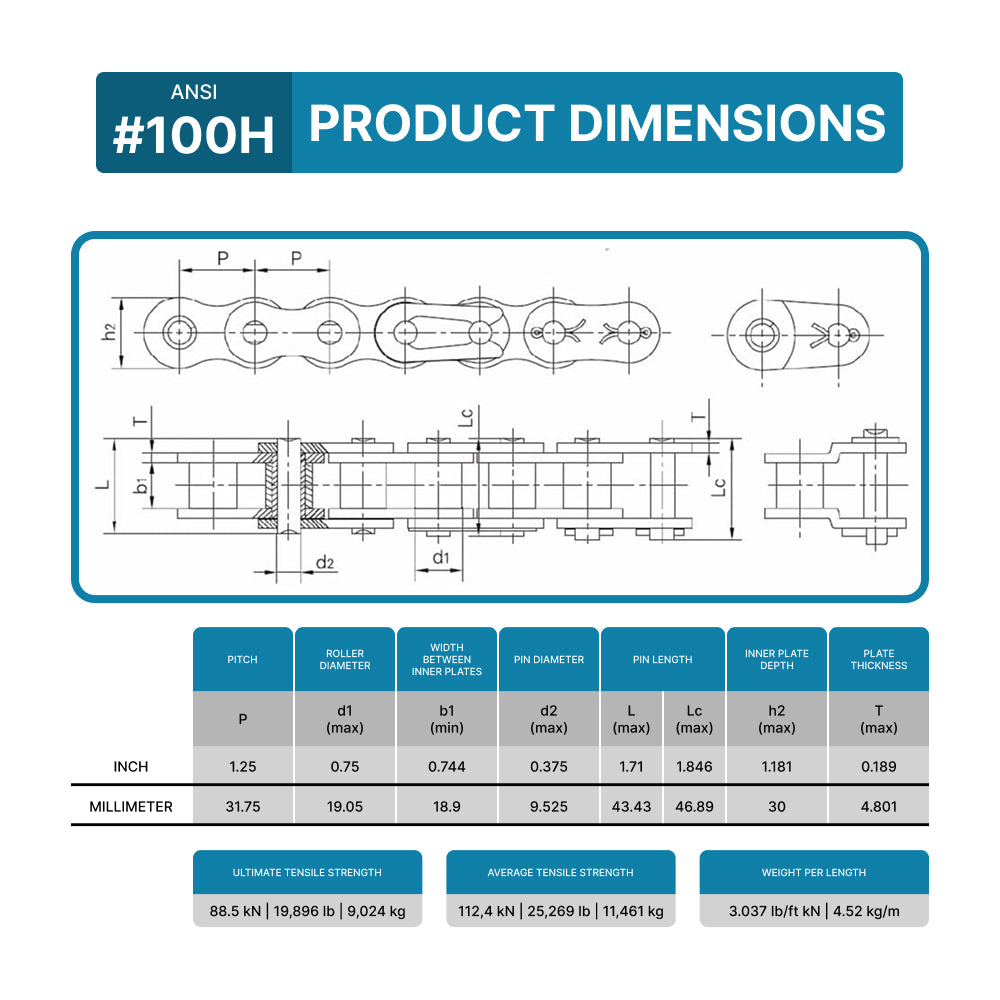

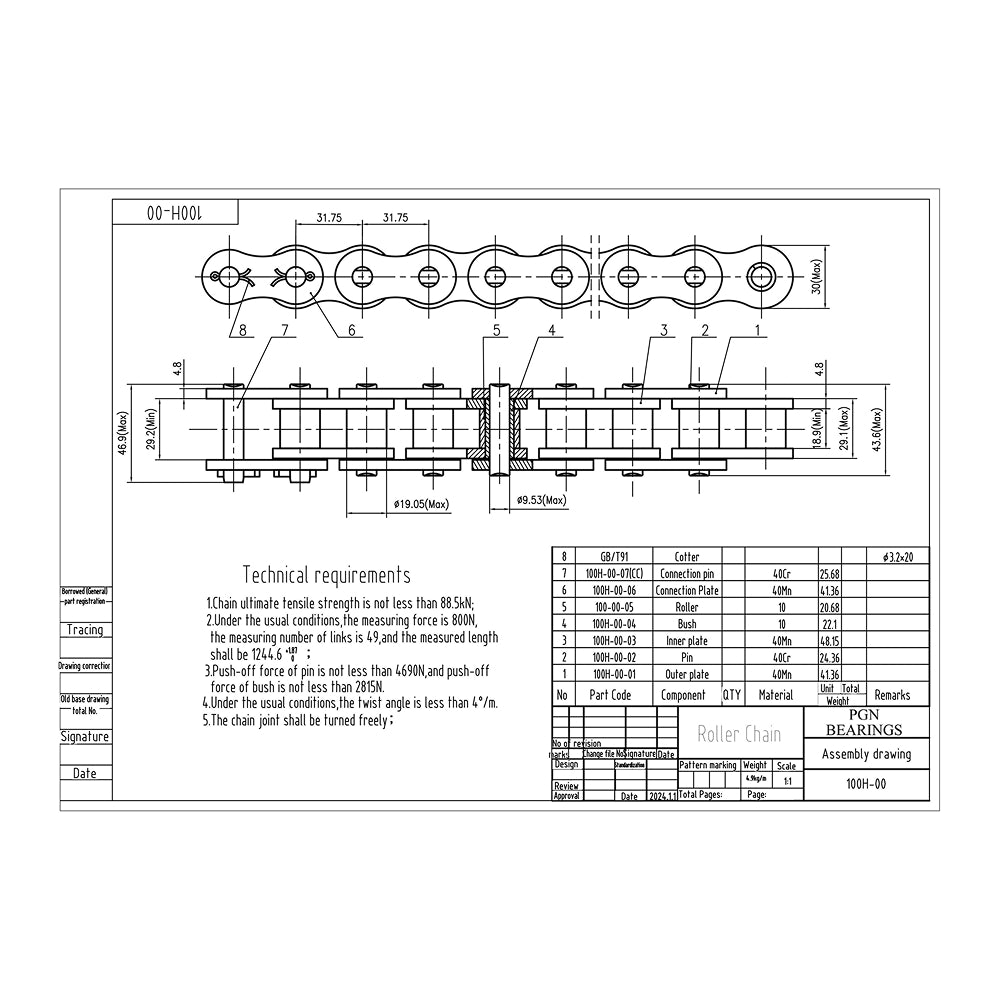

ANSI Chain No.: #100H
Length: 10 feet
Pitch (P): 1.25 inch (31.75 mm)
Roller Diameter (d1 max): 0.75 inch (19.05 mm)
Width Between Inner Plates (b1 min): 0.744 inch (18.9 mm)
Pin Diameter (d2 max): 0.375 inch (9.53 mm)
Pin Length (L max): 1.71 inch (43.6 mm)
Pin Length (Lc max): 1.846 inch (46.9 mm)
Inner Plate Depth (h2 max): 1.181 inch (30.0 mm)
Plate Thickness (T max): 0.189 inch (4.8 mm)
Ultimate Tensile Strenght (Q min): 88.5/20114 kN/LB
Average Tensile Strenght (Qo): 112.4 kN
Weight (q): 3.037 lb/ft (4.52 kg/m)

What is the #100H Heavy Duty Roller Chain?

The #100H Heavy Duty Roller Chain is a premium carbon steel roller chain designed for industrial applications that demand exceptional strength and durability. Measuring 10 feet (approximately 3 meters), this model follows the ANSI #100H standard and is compatible with a wide range of machinery.

It offers a robust solution for mechanical power transmission in conveyor systems and heavy machinery, especially where high performance and reliability are essential. The package includes two free connecting links for convenient installation.

Industrial Applications

The #100H Heavy Duty Roller Chain is widely used in industries such as manufacturing, agriculture, automotive, and construction. This model is engineered to withstand high tensions and heavy loads, making it ideal for machines operating under tough conditions. Common applications include:

• Conveyor systems in automobile factories

• Agricultural machinery like harvesters and tractors

• Mining and construction equipment

• Conveyor belts in industrial assembly lines

• Material handling equipment

Due to its precision, abrasion resistance, and long service life, the #100H Roller Chain is essential in operations where minimizing downtime due to mechanical failure is critical.

Benefits of Using the #100H Heavy Duty Roller Chain

• Durability: The #100H Roller Chain is built from high-strength carbon steel, ensuring a long service life even in harsh environments. With an average tensile strength of 112.4 kN, it can handle heavy loads without deformation or breakage, reducing the need for frequent maintenance.

• High Performance: Featuring a robust design and precision engineering, the #100H Heavy Duty Roller Chain delivers reliable power transmission, ensuring smooth operation of heavy machinery. Its resistance to impact and vibrations further stabilizes performance in high-load machines.

• Versatility: This model is highly versatile, compatible with a broad range of industrial equipment. Thanks to its ANSI #100H standardized specifications, it simplifies replacement and maintenance across various types of machinery.

• Easy Maintenance: The chain includes two free connecting links, making installation easier and allowing for quick adjustments. Additionally, its durable construction minimizes the need for frequent adjustments or replacements.

• Cost-Effectiveness: Investing in the #100H Roller Chain reduces wear on mechanical components, lowering costs associated with frequent replacements and emergency repairs.

About PGN

PGN is a pioneer in bearings and supplies hundreds of reliable bearings that get the job done. Our South Florida-based company has the experience and resources to manufacture flawless bearings and a wide range of other products to meet our customers' varied needs.Additionally, we specialize in Roller Chains, Welding Wires, Pillow Block Bearings, Slingshot Ammo, Precision Balls, and Rocks and Pebbles.

Frequently Asked Questions

What is the difference between a carbon steel roller chain and a stainless steel roller chain?

Stainless steel chains offer better corrosion resistance, while carbon steel chains like the #100H Roller Chain provide higher tensile strength, making them more suitable for environments where corrosion resistance isn't the primary concern.

Can I use the #100H Roller Chain in outdoor equipment?

Yes, as long as the environment is non-corrosive. For outdoor use, regular lubrication and maintenance are recommended to extend the chain’s lifespan.

What is the maximum load that the #100H Roller Chain can handle?

The chain has an average tensile strength of 112.4 kN, making it suitable for handling heavy loads in demanding industrial applications.

What maintenance is required to keep the #100H Roller Chain in good condition?

Regular lubrication and periodic inspections are necessary to prevent wear and ensure longevity. Replacing worn parts promptly is also essential.

What is the difference between pitch and inner plate width?

Pitch refers to the distance between the chain’s pins, which in the #100H Roller Chain is 1.25 inches (31.75 mm). The inner plate width is the distance between the two inner plates of the chain, which is 0.744 inches (18.9 mm).

How do I know if the #100H Roller Chain is compatible with my equipment?

The #100H Roller Chain follows the ANSI #100H standard, ensuring compatibility with machinery that uses roller chains of this type. Check your machine's specifications to confirm compatibility.
